APPLICATION - FUEL TANK TRUCK
Tanker distinguishing characteristics:
- As usual from
TWO and up to FOUR cargo fuel
compartments;
- As usual tank
depth is about 1500 ... 2000mm;
- As usual
transportation any type of fuel (diesel fuel,
petrol, kerosene etc.);
- As usual ONE
or TWO vehicle regular tanks (depth about 500
... 700mm).
|
.jpg)
Fuel Tank
Truck |
Main

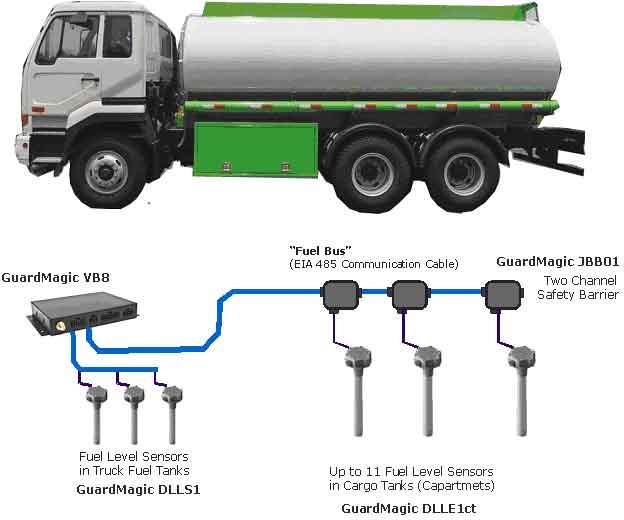

structure of fuel monitoring of road fuel tanker "Fuel Tank Truck"
main
components:
|
|
collect data from fuel level sensors, information
about tanker movements, tanker location and send
this information to monitoring station
|
|
|
Only if need
monitor tractor regular fuel tank.
Fuel level sensors
can be: GuardMagic DLLS1a or GuardMagic DLLS1b
(as usual sensor
length is 500 ... 700mm)
|
|
|
This cable is
intended for easy connection fuel level sensor
GuardMagic DLLS1 to main module. Cable length
can be from: 2 meters and up to 10 meters.
Cable made of oil,
fuel, water, UF resistance cable.
If necessary for
additional mechanical protection this cable be
mounted inside additional flexible plastic tube.
As usual length of
this cable is 5 meters or 7 meters.
|
|
|
This cable is
intended for easy radial fuel level sensor
connection each other (only if need)
|
|
|
For measurement
fuel level in cargo fuel compartments in cargo
tank (as usual sensor
length is from 1500mm and up to 2000mm)
|
|
|
Two channel
"Safety Barrier"
Fuel level sensor
electrical protection. Necessary to use
Barrier support up
to TWO fuel level sensors GuardMagic DLLE1ct
|
|
|
oil, fuel, water,
UF resistance cable (oilflex robust 210)
For electrical
connection "Safety Barrier" and trailer
connector.
If necessary for
additional mechanical protection cable be
mounted inside additional flexible plastic tube.
|
|
note: |
In additional can be installed "LID monitoring system"
(in development)
|
|
